Product Description

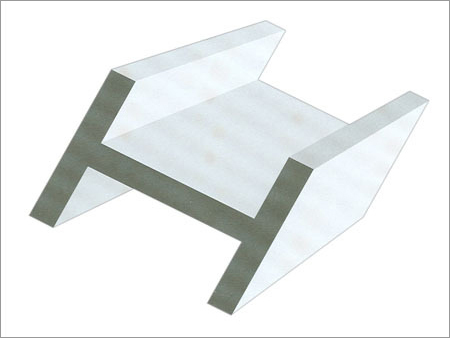

I-Beam
The group manufactures products from tested quality Blooms and Billets Procured from steel Authority of India Limited (SAIL). The use of such Raw Material from reliable source guarantees a balanced chemical composition and uniform quality of high order. Our ranges of product are :

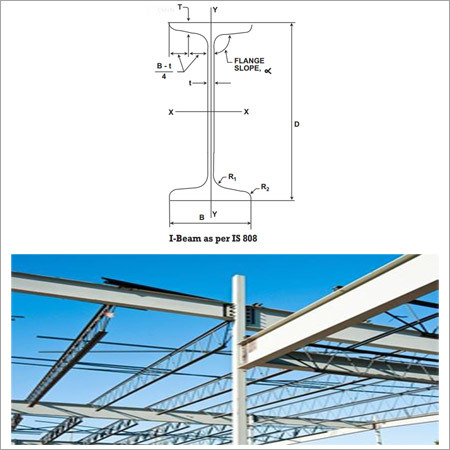

I- Beam as per IS 808
| Designation | Mass M | Sectional Area, a | Dimensions | ||||||
| Kg/ m | Cm2 | Mm | Mm | Mm | Mm | Flange Slope, maca, deg | R1 | R2 | |
| MB 150 | 15.0 | 19.1 | 150 | 75 | 5.0 | 8.0 | 98.0 | 9.0 | 4.5 |
| MB 175 | 19.6 | 25.0 | 175 | 85 | 5.8 | 9.0 | 98.0 | 10.0 | 5.0 |
| MB 250 | 37.3 | 47.5 | 250 | 125 | 6.9 | 12.5 | 98.0 | 13.0 | 6.5 |
| MB 300 | 46.0 | 58.6 | 300 | 140 | 7.7 | 13.1 | 98.0 | 14.0 | 7.0 |
| MB 350 | 52.4 | 66.7 | 350 | 140 | 8.1 | 14.2 | 98.0 | 14.0 | 7.0 |
| MB 400 | 61.5 | 78.4 | 400 | 140 | 8.9 | 16.0 | 98.0 | 14.0 | 7.0 |
| MB 450 | 72.4 | 92.2 | 450 | 150 | 9.4 | 17.4 | 98.0 | 15.0 | 7.5 |
| MB 500 | 89.9 | 111 | 500 | 180 | 10.2 | 17.2 | 98.0 | 17.0 | 8.5 |
| MB 600 | 123 | 156 | 600 | 210 | 12.0 | 20.0 | 98.0 | 20.0 | 10.0 |
